CONVECTION OVEN - MIWE CONDO

A purpose-built, real bakers’ oven used in in-store bakeries and restaurants. It can handle everything from tasty pastries to coarse rye breads.

  • Each separate chamber can bake different products simultaneously, and can be programmed with different programs of steam, heat and time
  • The baking chambers are corrosion-proof. Stone hearth slabs are standard fit in this oven
  • The oven’s heat is radiant electrical. The steam apparatus is well insulated, and can be integrated into each chamber

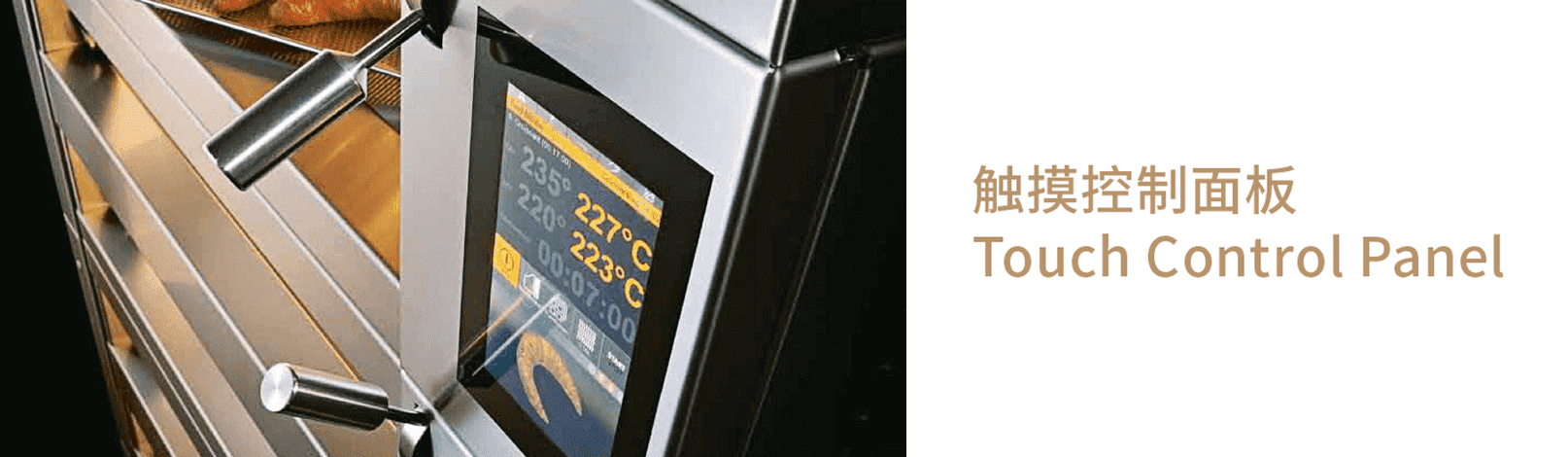

  • The MIWE Condo has a flexible modular construction system that allows for easy expansion and flexibility. The unit is operated with the MIWE FP digital control system

Baking Chamber WxDxH(mm) - 600 x 400 x 170 / 220

CO1 CO2 CO3 CO4 CO5
Baking Chamber 1 2 3 4 5
Baking Trays (600x400mm) 1 2 3 4 5
Steam Hood Height (mm) 190
Power Load (kW) 2.8 5.6 8.3 11.1 13.8
Steam Generator (kW) 1.5 3 4.5 6 7.5
Castor Height (mm) 40 / 86 / 108 / 155 / 170
Proofing Cabinet
Proofer Height (mm) 543 / 613 / 773
Tray Supports 10 / 12 / 16
Baking Trays (600x400mm) 10 / 12 / 16
Power Load (kW) 2.2

Baking Chamber WxDxH(mm) - 600 x 800 x 170 / 220

CO1 CO2 CO3 CO4 CO5
Baking Chamber 1 2 3 4 5
Baking Trays (600x400mm) 2 4 6 8 10
Steam Hood Height (mm) 190
Power Load (kW) 4.2 8.4 12.5 16.7 20.9
Steam Generator (kW) 1.5 3 4.5 6 7.5
Castor Height (mm) 40 / 86 / 108 / 155 / 170
Proofing Cabinet
Proofer Height (mm) 543
Tray Supports 5 / 10
Baking Trays (600x400mm) 5 / 10
Power Load (kW) 2.2

Baking Chamber WxDxH(mm) - 800 x 600 x 170 / 220

CO1 CO2 CO3 CO4 CO5
Baking Chamber 1 2 3 4 5
Baking Trays (600x400mm) 2 4 6 8 10
Steam Hood Height (mm) 190
Power Load (kW) 4.2 8.4 12.6 16.8 21
Steam Generator (kW) 1.5 3 4.5 6 7.5
Castor Height (mm) 40 / 86 / 108 / 155 / 170
Proofing Cabinet
Proofer Height (mm) 543
Tray Supports 5 / 10
Baking Trays (600x400mm) 5 / 10
Power Load (kW) 2.2

Baking Chamber WxDxH(mm) - 1200 x 800 x 170 / 220

CO1 CO2 CO3 CO4 CO5
Baking Chamber 1 2 3 4 5
Baking Trays (600x400mm) 4 8 12 16 20
Steam Hood Height (mm) 190
Power Load (kW) 6.4 12.8 19.2 25.6 31.9
Steam Generator (kW) 3 6 9 12 15
Castor Height (mm) 170
Proofing Cabinet
Proofer Height (mm) 543
Tray Supports 10
Baking Trays (600x400mm) 10
Power Load (kW) 2.2

Baking Chamber WxDxH(mm) - 1200 x 1200 x 170 / 220

CO1 CO2 CO3 CO4 CO5
Baking Chamber 1 2 3 4 5
Baking Trays (600x400mm) 6 12 18 24 30
Steam Hood Height (mm) 190
Power Load (kW) 8.8 17.5 26.3 35.0 43.7
Steam Generator (kW) 3 6 9 12 15
Castor Height (mm) 170
Proofing Cabinet Not Available
